I-Beam Fillet Ceiling Insulation

The natural benefits of Terra Lana wool now for the optimal insulation of timber I-Beam systems



Timber I-Beams are often specified over standard solid timber framing to reduce thermal bridging and increase span capacity. I-Beams create voids that are difficult to insulate using standard insulation products. Terra Lana timber I-Beam fillets friction-fit within the voids to ensure maximum thermal performance.

Our I-Beam Fillets are the only specific insulation solution available for timber I-Beams.

wool I-Beam fillet insulation

Key Product Data

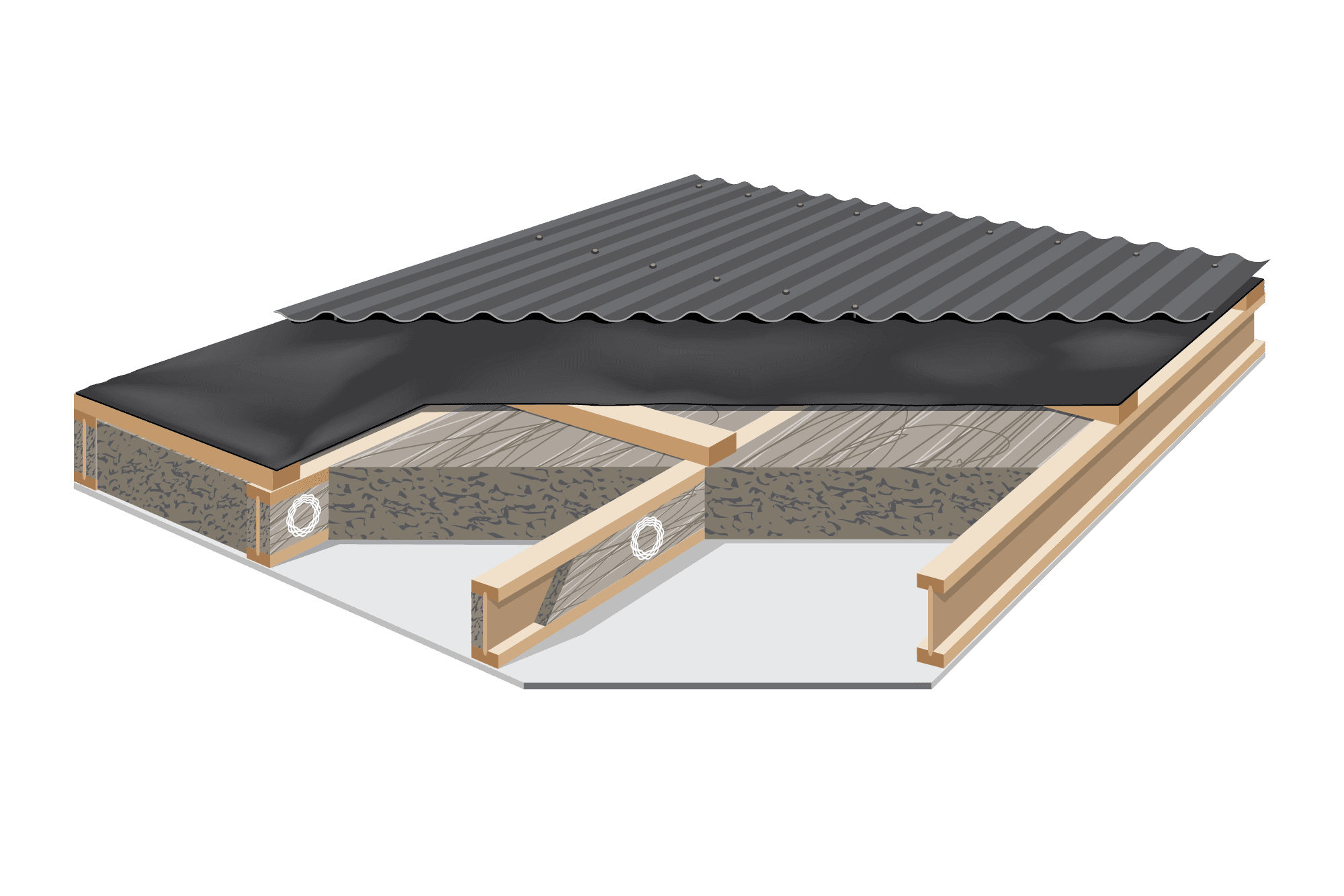

Terra Lana I-Beam Fillet wool Insulation diagram
FILLET SIZE
R-VALUE
BATTEN
BALE CONTAINS
M2/BALE
CODE
200mm hyJOIST
120mm
R0.9
35mm
8 x 6m x 120mm
48 lm/bale
09.35.120F
240mm hyJOIST
160mm
R0.9
35mm
7 x 6m x 160mm
42 lm/bale
09.35.160F
MANUFACTURER
hyJOIST
hyJOIST
hyJOIST*
Lumberworx*
Lumberworx*
Lumberworx*
* Other product fillets made to order—specify by fillet size, as per table above
I-Beam Size
200mm
240mm
300mm
200mm
240mm
300mm
Fillet Size
120mm
160mm
220mm
140mm
180mm
240mm
homeowner icon

Data sheets

homeowner icon

Installation Guides

homeowner icon

Specifications Sheet

Sales & Specifications

Contact our team to find out which Terra Lana product is right for your project.
